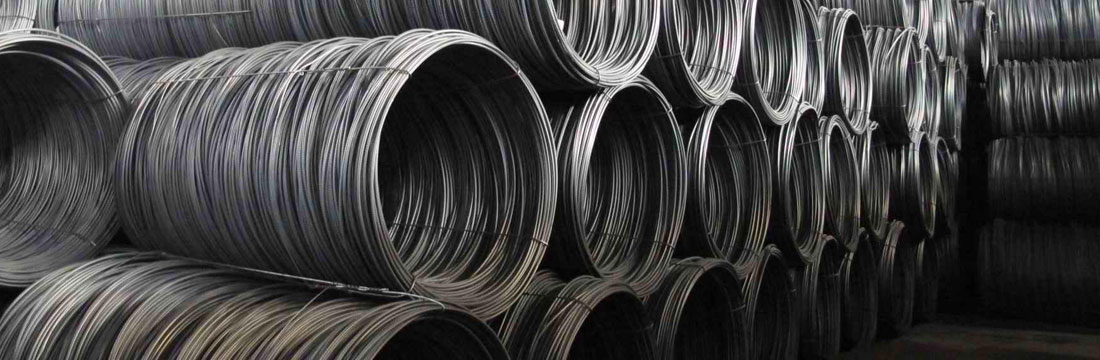

Wire Rod / Wire Gauge

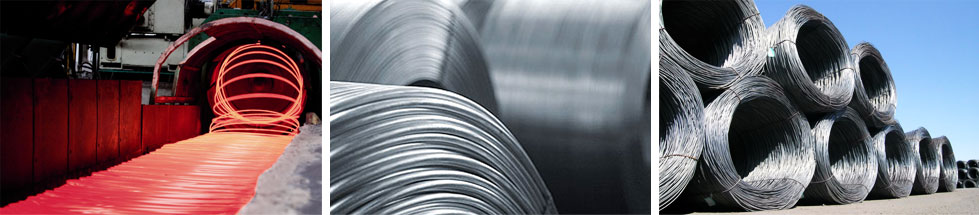

We are having the latest technology wire drawing machines which ensures best quality Wire Rod. Wire Rod is used for various applications including Binding wire, Gl wire, Barbed wire for fencing, Armored sealed wire for heavy electrical cables, Nut bolts, Nails, screws, Alpine. Wire ropes. Wire mesh etc.

Specifications of Wire Rod

Steel Wire Rod : 14 LC (Low Carbon), 5.5 mm Diameter Chemistry as under (%) :
IS 2879:1998 (Max) IS 2062:2011 Grade - A (Max)
C 0.14 0.23
Mn 0.60 1.50
P 0.050 0.045
S 0.050 0.045
Si 0.20 0.40

* The above comforms to SWR14 of IS 2879:1998 & IS:2062:2011 Grade A

  1. UTS (N/NM2 max): 410 to 450
  2. R.A. (% Min) : 55% (5.5 mm)
  3. Coil weight : 450 kg
  4. Coil Length : 2400 mtrs. around approx.
